How to assemble the R10s Lite?

Installment of Stick Vacuum

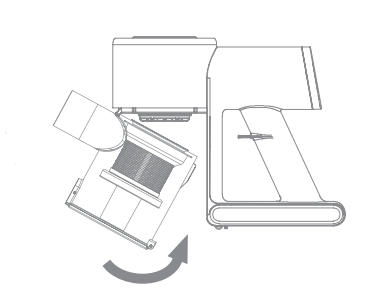

1. Connect the dust cup to the main body based on the position shown in the diagram. The installation is complete when you hear a "click" sound.

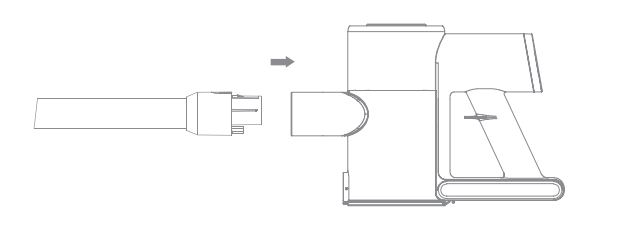

2. Connect one end of the foldable rod to the dust cup air inlet based on the position shown in the diagram. The installation is complete when you hear a "click" sound

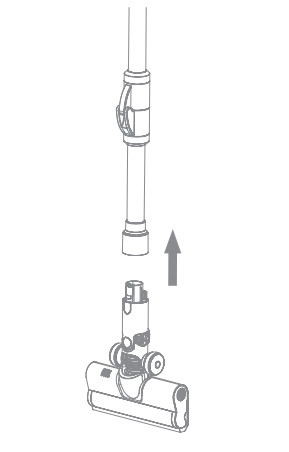

3. Connect the illumination multi surface brush to the other end of the foldable rod based on the position shown in the diagram. The installation is complete when you hear a "click" sound.



Installment of Accessories

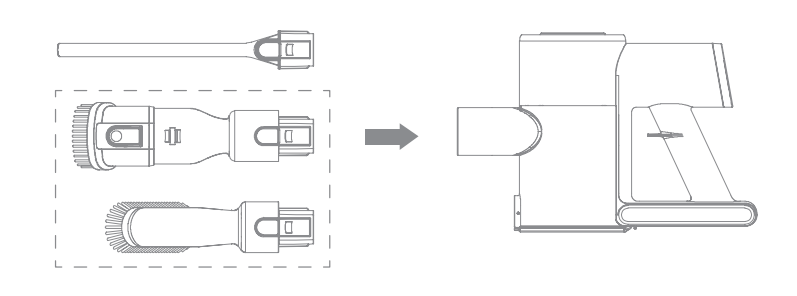

1. The installation is complete when you hear a "click" sound.

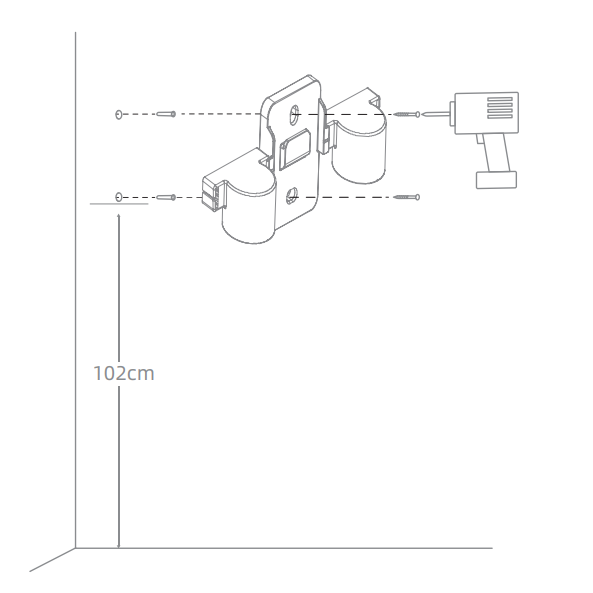

2. The storage mount should be installed on a cool, dry surface with an electrical outlet nearby. Prior to installing, ensure that there are no electrical wires or pipes in the space directly behind installment position.



Note: The storage mount is an optional accessory. You can install it based on your needs.
