1. What are the precautions for installation/use?
Before the installer comes to the door, you need to make the following preparations:
- Check the power socket and power cord to be used in the refrigerator. The power supply of this refrigerator is equipped with three wires (grounded), and the plug meets the standard three wires (grounded) socket. Do not cut or remove the third pin (grounded) of the power cord under any circumstances.
The plug should be accessible for easy insertion and removal.
The socket must be above 10A and must be dedicated to the refrigerator. The power plug must not be contaminated with dust and must be plugged in to the end. Do not touch the power plug when installing the refrigerator. Also, remember to turn off the power when cleaning the refrigerator. - After the refrigerator is installed and used, do not place anything on the top of the refrigerator. If there are babies at home, keep them away from the refrigerator as much as possible. Do not let children pull the door to play on the swing or step on the drawer. Do not splash water on the refrigerator.
- Do not put glass products and cans in the freezer to prevent damage after thermal expansion and contraction, and there is a risk of cutting hands.
We will find detailed descriptions in the instructions that come with the box. You can take a look and consult customer service if you have any questions.
2. Where to Install Your Unit?
- Place the refrigerator on a hard, flat surface. If cushioning is needed, use stable, hard, non-flammable blocks. DO NOT USE FOAM PACKAGING AS CUSHIONING BLOCKS!
- The unit must be kept away from damp or wet locations. Wipe any water or dirt off the unit immediately with a soft cloth to prevent rust and maintain optimal performance.

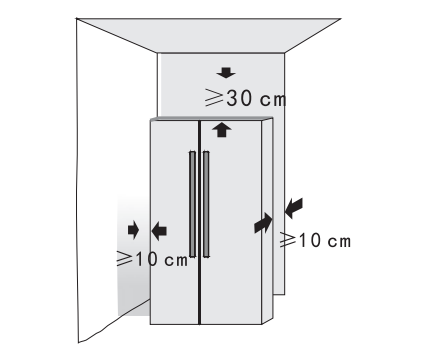

- Place the refrigerator in a well-ventilated area, ensuring adequate space around and behind the unit. Do not cover or obstruct the air vent grille on the rear compressor panel. Keep the refrigerator away from heat sources and direct sunlight.
3. Installation Dimensions

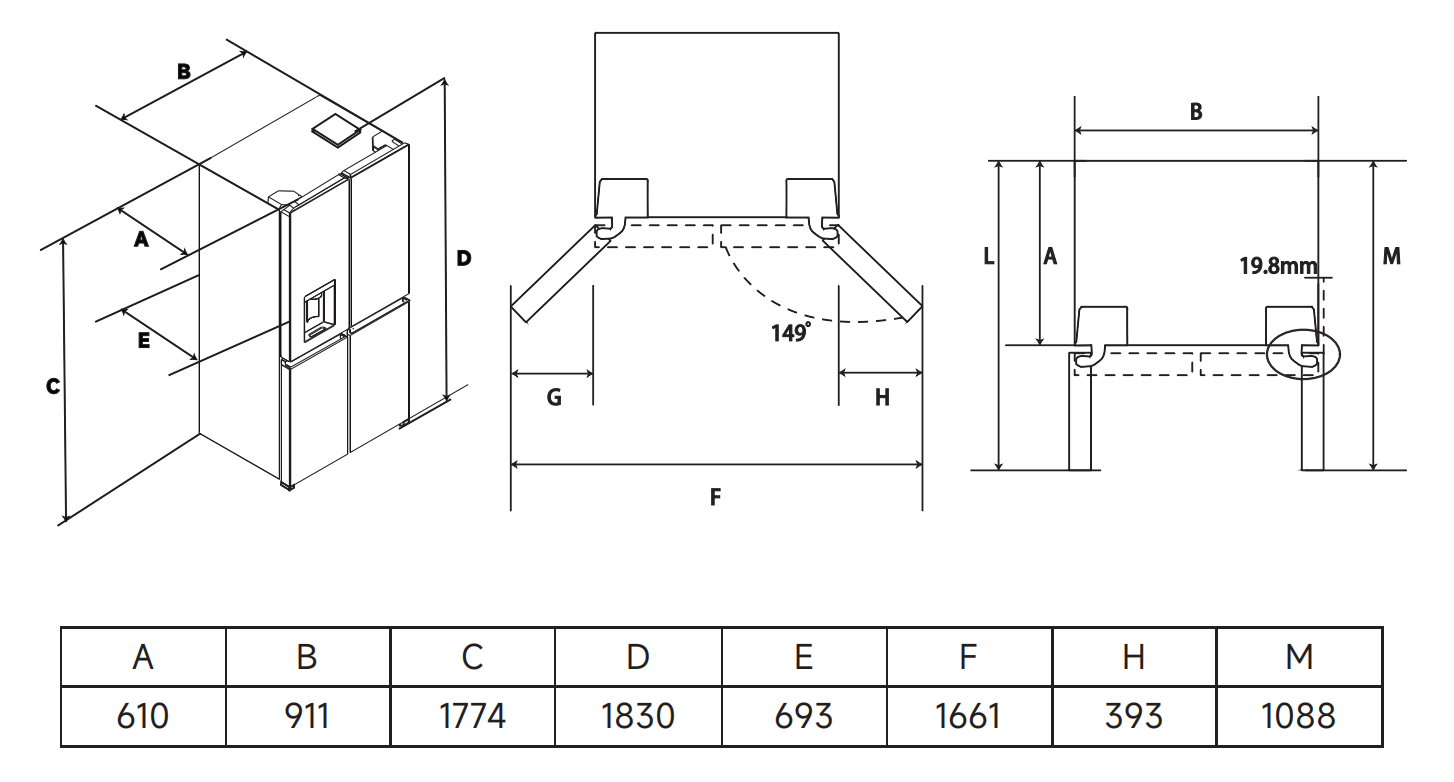

560L:

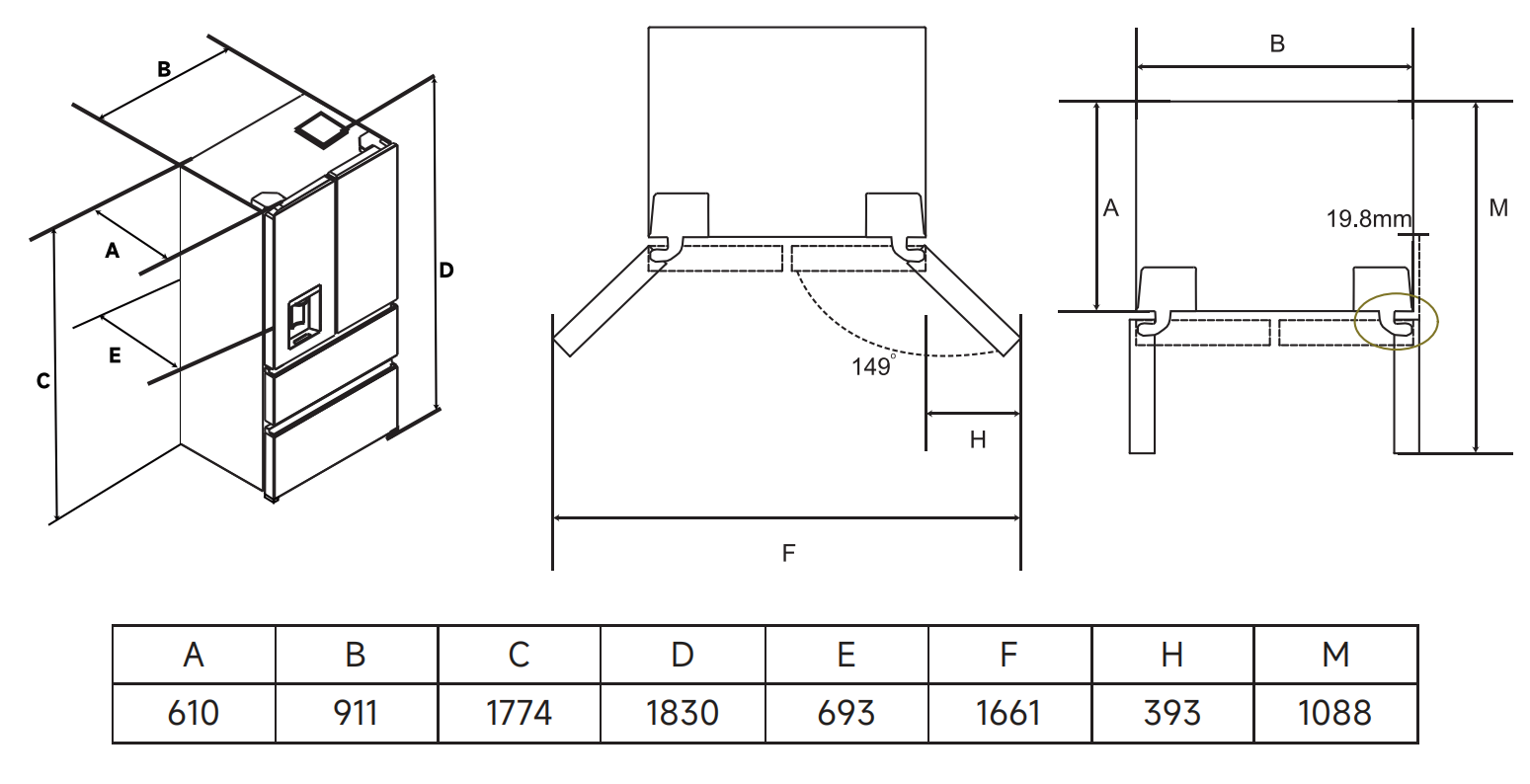

540L:

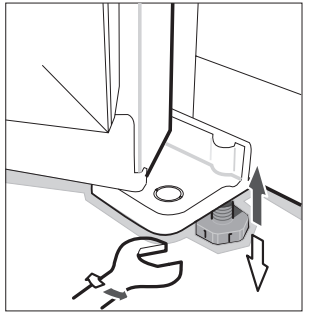

4. How to Adjust the Plastic Feet?
- When still in its packaging, the refrigerator’s plastic feet are tightened. After unpacking, adjust the two front plastic feet to the proper height. You can adjust these plastic feet using a wrench or by hand.
- Ensure the plastic feet and rear rollers touch the ground to prevent movement or noise. When moving the refrigerator, slightly raise the front feet by turning counterclockwise, then gently slide the unit to reposition it.
