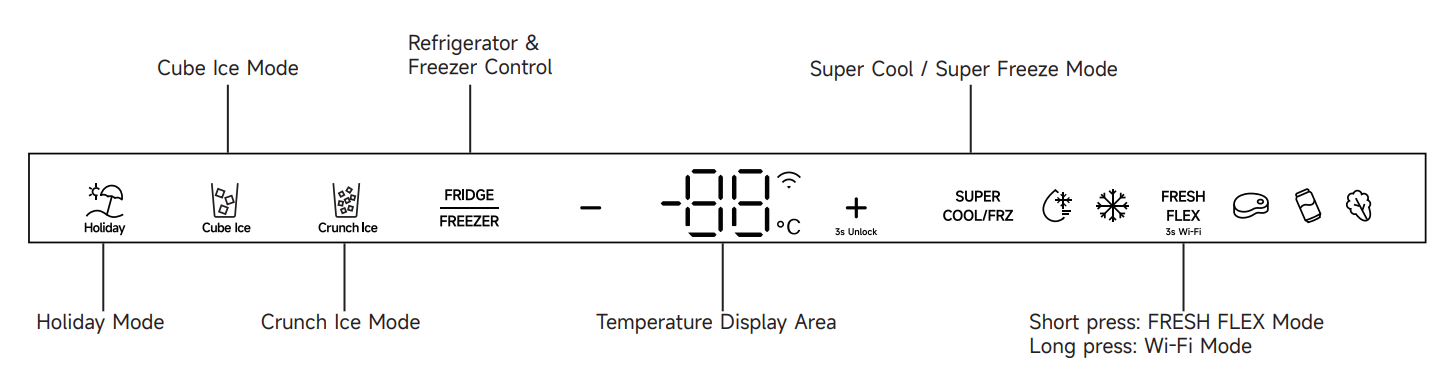

Control Panel
Holiday Mode
The Holiday function is OFF by default after power-on, and the icon remains inactive. Touch button to activate Holiday Mode. The refrigerator temperature is set to 15°C, and the freezer temperature is set to -18°C. Touch button again to exit Holiday Mode. The refrigerator and freezer compartments will revert to their previous temperature settings. (Note: Enabling Holiday Mode will deactivate both the ice-making and sparkling water functions.)
Cube Ice Mode
The Cube Ice function is OFF by default upon power-up, and the indicator icon remains inactive. Touch button to activate the cube ice maker. The indicator will light up and cube ice production will begin. Ice production operates continuously in cycles. Touch button again to disable the function.
Crunch Ice Mode
The Crunch Ice function is OFF by default upon power-up, and the indicator icon remains inactive. Touch button to activate the chewable ice maker. The indicator will light up and chewable ice production will begin. Ice production operates continuously in cycles. Touch button again to disable the function.
Refrigerator & Freezer Control
Refrigeration key:
The refrigerator key is used to control the temperature of the refrigerator compartment.
- When the digital area displays the non-refrigerated compartment setting temperature, the refrigeration key indicator light is half-lit. Press the refrigeration key for the first time, and the digital area switches to display the refrigeration compartment setting temperature. At the same time, the refrigeration key indicator light switches to the highlighted display state.
- Short press the refrigerator button to switch the display content in the digital area to the set temperature value in the refrigerator compartment.
- The set temperature range for the refrigeration compartment is 2-8 ℃; the default setting for the first power-on is 5 ℃.
Freeze key:
The freeze button is used to control the temperature of the freezer
- When the digital area displays the non-freezer setting temperature, the freezer key indicator light is half-lit. Press the freezer key for the first time, and the digital area switches to display the freezer setting temperature. At the same time, the freezer key indicator light switches to the highlighted display state.
- Short press the freezer button to switch the display content in the digital area to the set temperature value in the freezer compartment.
- The set temperature range of the freezer is: -16~ -23 ℃; the default setting when first powered on is -18 ℃.
Super Cool / Super Freeze Mode
The SUPER COOL/FRZ function defaults to OFF after power-on, with the indicator
icon remaining off. Touch operation logic:
- Tap once: Super Cool mode ON:
icon remains continuously lit.
- Tap twice: Super Cool + Super Freeze modes ON,
and
icons remain
continuously lit. - Tap three times: Super Cool mode OFF,
- Tap four times: Super Cool + Super Freeze modes OFF,
icons turn off.
Super Cool :
When activated, the refrigerator compartment temperature is set to 2°C. The function automatically deactivates after 2 hours, and the indicator turns off. Touch the
button again during operation to manually deactivate the function.
Super Freeze:
When activated, the freezer compartment temperature is set to -24°C. The function automatically deactivates after 24 hours or once the freezer temperature reaches -28°C, whichever occurs first. Touch the button again during operation to manually deactivate the function.
Fresh Flex Mode
Power-on default "Fruit & Vegetable" mode, single tap to switch modes.
- Soft Freeze Mode: The flex temperature drawer will operate at -3~1 °C
- Beverage Mode: The flex temperature drawer will operate at -1~1 °C
- Fruit & Vegetable Mode: The flex temperature drawer will operate at 2~4 °C
